sgpp::base::ConvertLinearToPrewavelet Class Reference

Class that implements the transformation of a hierarchical linear sparse grid to a hierarchical prewavelet sparse grid. More...

#include <ConvertLinearToPrewavelet.hpp>

Public Member Functions

 ConvertLinearToPrewavelet (GridStorage &storage, GridStorage &shadowstorage)
 Constructor, must be bind to a grid.

void operator() (DataVector &source, DataVector &result, grid_iterator &index, size_t dim)
 Converts a given linear base to a prewavelet base.

 ~ConvertLinearToPrewavelet ()
 Destructor.


Protected Types

typedef GridStorage::grid_iterator grid_iterator

typedef index_t index_type

typedef level_t level_type


Protected Attributes

GridStorageshadowstorage

GridStoragestorage
 the grid object


Detailed Description

Class that implements the transformation of a hierarchical linear sparse grid to a hierarchical prewavelet sparse grid.

Therefore the ()operator is implemented in order to use the sweep algorithm for the grid traversal. Let the coefficients from the hat basis be \( h_{l,i}\) and from the prewavelet basis \( u_{l,i} \). To calculate the surplusses, temp values are needed:

\[ (l,i)\neq G_{n}^{1}:t_{l,i}=-\frac{6}{10}u_{l,i\pm1}+t_{l+1,2i} \]

All temp values for levels greater than the maximal level of the grid are set to 0. The actual transformation is defined by the following tridiagonal equation system:

\begin{eqnarray*} \frac{16}{10}u_{l,i}+\frac{4}{10}u_{l,i\pm2}&=&h_{l,i}-t_{l+1,2i}+\frac{1}{2}t_{l+1,2(i\pm1)}\\\frac{12}{10}u_{l,1}+\frac{4}{10}u_{l,3}&=&h_{l,1}-t_{l+1,2}+\frac{1}{2}t_{l+1,4}\\\frac{12}{10}u_{l,2^{l}-1}+\frac{4}{10}u_{l,2^{l}-3}&=&h_{l,2^{l}-1}-t_{l+1,2(2^{l}-1)}+\frac{1}{2}t_{l+1,2(2^{l}-2)} \end{eqnarray*}

For solving these tridiagonal systems, the method described in http://www.nrbook.com/a/bookcpdf/c2-4.pdf was used. Some odd Fileopen® plugin is needed to open that file ... sorry for that! the picture depicts all needed variables in oder to perform the transformation:

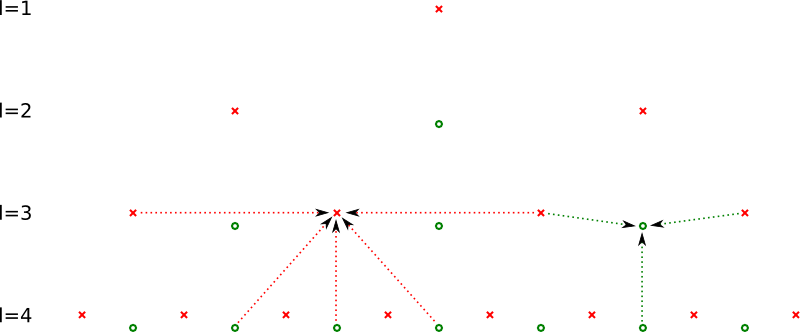

This picture shows all involved gridpoints (red crosses) and temp values (green circles) to calculate the new hierarchical coefficients (red arrows) and new temp values (green arrows).

Member Typedef Documentation

◆ grid_iterator

◆ index_type

◆ level_type

Constructor & Destructor Documentation

◆ ConvertLinearToPrewavelet()

sgpp::base::ConvertLinearToPrewavelet::ConvertLinearToPrewavelet ( GridStorage storage,
GridStorage shadowstorage
)
inline

Constructor, must be bind to a grid.

An adaptive grid with prewavelet ansatz functions requires for operations using the up-down algorithm shadow points. These shadow points a needed just for data transport, thus they do not have an influence on the final function. Please refer to sgpp::pde::UpDownOneOpDimWithShadow for more information.

Parameters
storagethe grid storage object of the the grid, on which the hierarchisation should be executed
shadowstorageshadow points (see detailed description)

◆ ~ConvertLinearToPrewavelet()

sgpp::base::ConvertLinearToPrewavelet::~ConvertLinearToPrewavelet ( )
inline

Destructor.

Member Function Documentation

◆ operator()()

void sgpp::base::ConvertLinearToPrewavelet::operator() ( DataVector source,
DataVector result,
grid_iterator index,
size_t  dim
)

Member Data Documentation

◆ shadowstorage

GridStorage& sgpp::base::ConvertLinearToPrewavelet::shadowstorage
protected

◆ storage

GridStorage& sgpp::base::ConvertLinearToPrewavelet::storage
protected

the grid object

Referenced by operator()().
