sgpp::base::OperationEvalPartialDerivative Class Reference

Abstract operation for evaluating a partial derivative of a linear combination of basis functions. More...

#include <OperationEvalPartialDerivative.hpp>

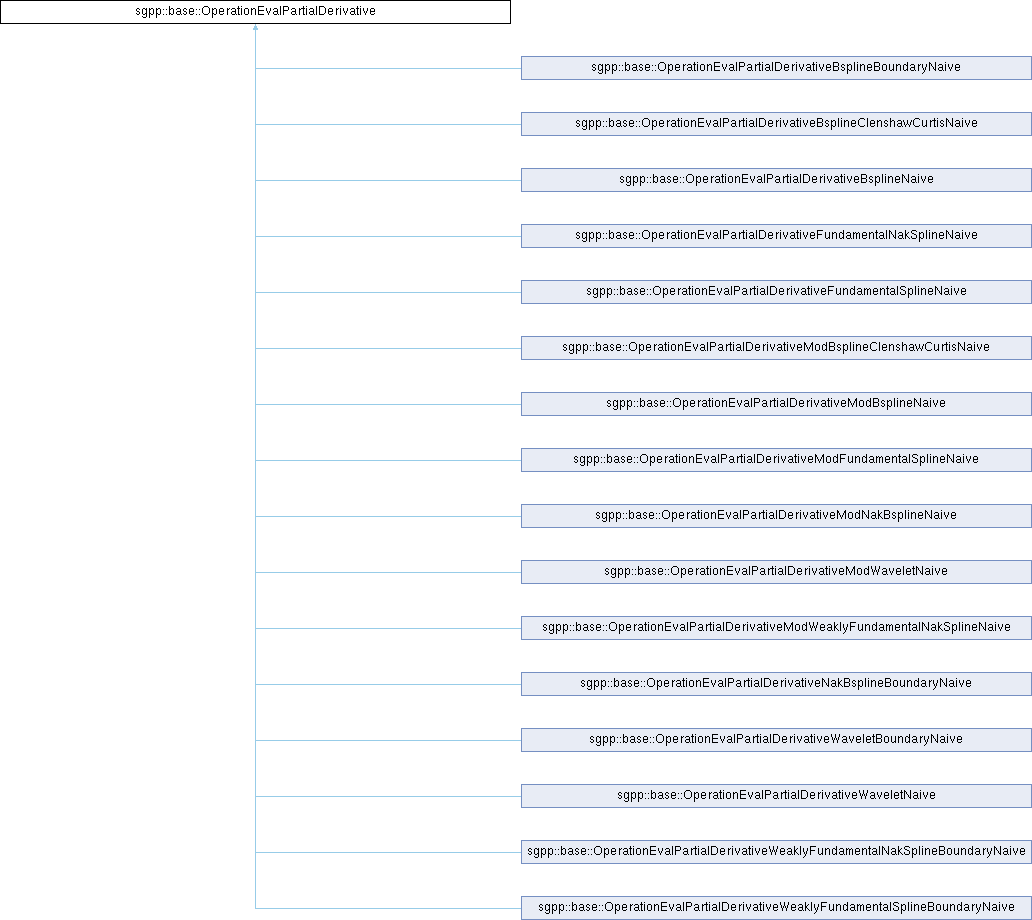

Inheritance diagram for sgpp::base::OperationEvalPartialDerivative:

Public Member Functions
virtual void	evalPartialDerivative (const DataMatrix &alpha, const DataVector &point, size_t derivDim, DataVector &value, DataVector &partialDerivative)
virtual double	evalPartialDerivative (const DataVector &alpha, const DataVector &point, size_t derivDim, double &partialDerivative)=0
	OperationEvalPartialDerivative ()
	Constructor.
virtual	~OperationEvalPartialDerivative ()
	Destructor.

Public Attributes
DataVector	pointInUnitCube
	untransformed evaluation point (temporary vector)

Detailed Description

Abstract operation for evaluating a partial derivative of a linear combination of basis functions.

The "naive" is indicating that classes implementing this operation should use a "naive" approach, e.g. by evaluating all basis functions by brute force.

Constructor & Destructor Documentation

OperationEvalPartialDerivative()

sgpp::base::OperationEvalPartialDerivative::OperationEvalPartialDerivative ( )

inline

Constructor.

~OperationEvalPartialDerivative()

virtual sgpp::base::OperationEvalPartialDerivative::~OperationEvalPartialDerivative ( )

inlinevirtual

Destructor.

Member Function Documentation

evalPartialDerivative() [1/2]

virtual void sgpp::base::OperationEvalPartialDerivative::evalPartialDerivative ( const DataMatrix &  alpha, const DataVector &  point, size_t  derivDim, DataVector &  value, DataVector &  partialDerivative  )

inlinevirtual

Parameters

	alpha	coefficient matrix (each column is a coefficient vector)
	point	evaluation point
	derivDim	dimension in which the partial derivative should be taken (0, ..., d-1)
[out]	value	values of the linear combination
[out]	partialDerivative	values of the partial derivatives of the linear combination (the j-th entry corresponds to the j-th column of alpha)

Reimplemented in sgpp::base::OperationEvalPartialDerivativeBsplineBoundaryNaive, sgpp::base::OperationEvalPartialDerivativeBsplineClenshawCurtisNaive, sgpp::base::OperationEvalPartialDerivativeBsplineNaive, sgpp::base::OperationEvalPartialDerivativeFundamentalNakSplineNaive, sgpp::base::OperationEvalPartialDerivativeFundamentalSplineNaive, sgpp::base::OperationEvalPartialDerivativeModBsplineClenshawCurtisNaive, sgpp::base::OperationEvalPartialDerivativeModBsplineNaive, sgpp::base::OperationEvalPartialDerivativeModFundamentalSplineNaive, sgpp::base::OperationEvalPartialDerivativeModNakBsplineNaive, sgpp::base::OperationEvalPartialDerivativeModWaveletNaive, sgpp::base::OperationEvalPartialDerivativeModWeaklyFundamentalNakSplineNaive, sgpp::base::OperationEvalPartialDerivativeNakBsplineBoundaryNaive, sgpp::base::OperationEvalPartialDerivativeWaveletBoundaryNaive, sgpp::base::OperationEvalPartialDerivativeWaveletNaive, sgpp::base::OperationEvalPartialDerivativeWeaklyFundamentalNakSplineBoundaryNaive, and sgpp::base::OperationEvalPartialDerivativeWeaklyFundamentalSplineBoundaryNaive.

References alpha, evalPartialDerivative(), and m.

evalPartialDerivative() [2/2]

virtual double sgpp::base::OperationEvalPartialDerivative::evalPartialDerivative ( const DataVector &  alpha, const DataVector &  point, size_t  derivDim, double &  partialDerivative  )

pure virtual

Parameters

	alpha	coefficient vector
	point	evaluation point
	derivDim	dimension in which the partial derivative should be taken (0, ..., d-1)
[out]	partialDerivative	value of the partial derivative of the linear combination

Returns

value of the linear combination

Implemented in sgpp::base::OperationEvalPartialDerivativeBsplineBoundaryNaive, sgpp::base::OperationEvalPartialDerivativeBsplineClenshawCurtisNaive, sgpp::base::OperationEvalPartialDerivativeBsplineNaive, sgpp::base::OperationEvalPartialDerivativeFundamentalNakSplineNaive, sgpp::base::OperationEvalPartialDerivativeFundamentalSplineNaive, sgpp::base::OperationEvalPartialDerivativeModBsplineClenshawCurtisNaive, sgpp::base::OperationEvalPartialDerivativeModBsplineNaive, sgpp::base::OperationEvalPartialDerivativeModFundamentalSplineNaive, sgpp::base::OperationEvalPartialDerivativeModNakBsplineNaive, sgpp::base::OperationEvalPartialDerivativeModWaveletNaive, sgpp::base::OperationEvalPartialDerivativeModWeaklyFundamentalNakSplineNaive, sgpp::base::OperationEvalPartialDerivativeNakBsplineBoundaryNaive, sgpp::base::OperationEvalPartialDerivativeWaveletBoundaryNaive, sgpp::base::OperationEvalPartialDerivativeWaveletNaive, sgpp::base::OperationEvalPartialDerivativeWeaklyFundamentalNakSplineBoundaryNaive, and sgpp::base::OperationEvalPartialDerivativeWeaklyFundamentalSplineBoundaryNaive.

Referenced by evalPartialDerivative().

Member Data Documentation

pointInUnitCube

DataVector sgpp::base::OperationEvalPartialDerivative::pointInUnitCube

untransformed evaluation point (temporary vector)

---

The documentation for this class was generated from the following file:

• base/src/sgpp/base/operation/hash/OperationEvalPartialDerivative.hpp
