Abstract class that defines the interfaces for the different grid's GridGenerators. More...

#include <GridGenerator.hpp>

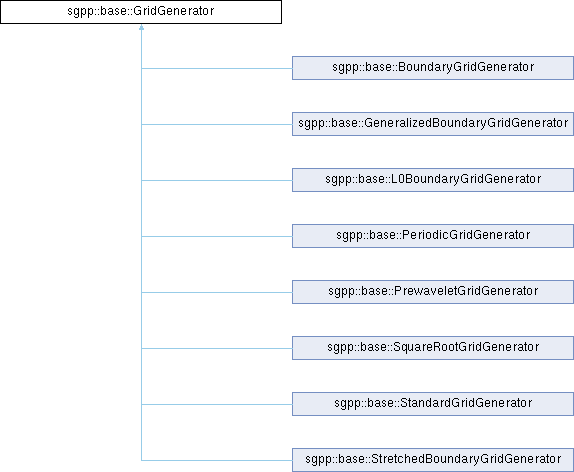

Inheritance diagram for sgpp::base::GridGenerator:

Public Member Functions
virtual void	anisotropicFull (std::vector< size_t > dimlevels)
	Creates an anisotropicFull Grid for certain level vector, for example [2,3,1] results in a 3x7x1 grid.

virtual void	cliques (size_t level, size_t clique_size)=0
	Creates a sparse grid with fully connected cliques.

virtual void	cliques (size_t level, size_t clique_size, double T)
	Creates a sparse grid with fully connected cliques.

virtual void	coarsen (CoarseningFunctor &func, std::vector< size_t > *removedSeq)=0
	Coarsens a grid according to the settings of the CoarseningFunctor func.

virtual void	coarsenNFirstOnly (CoarseningFunctor &func, size_t numFirstOnly, std::vector< size_t > *removedSeq, size_t minIndexConsidered)=0
	Coarsens a grid according to the settings of the CoarseningFunctor func.

virtual void	full (size_t level)=0
	Creates a full grid for a certain level \( n \), i.e., \( V_n = \bigoplus_{\|\vec{l}\|_\infty \leq n} W_{\vec{l}}\).

virtual size_t	getNumberOfRefinablePoints ()=0
	Returns the number of points on the grid that can be refined in the next iteration.

virtual size_t	getNumberOfRefinablePointsToMaxLevel (size_t maxLevel)=0
	Returns the number of points on the grid that can be refined in the next iteration additionally a maximum level for refinement is taken into account.

virtual size_t	getNumberOfRemovablePoints ()=0
	Returns the number of points on the grid that can be removed in the next iteration.

	GridGenerator ()
	Constructor.

virtual void	refine (RefinementFunctor &func, std::vector< size_t > *addedPoints=nullptr)=0
	Refines a grid according to the settings of the RefinementFunctor func.

virtual void	refineInter (RefinementFunctor &func, const std::set< std::set< size_t > > &interactions)
	Refines a grid according to the settings of the RefinementFunctor func.

virtual void	refineMaxLevel (RefinementFunctor &func, size_t maxLevel)=0
	Refines a grid according to the settings of the RefinementFunctor func.

virtual void	regular (size_t level)=0
	Creates a regular sparse grid for a certain level \( n \), i.e., \( V_n^{(1)} = \bigoplus_{\|\vec{l}\|_1 \leq n+d-1} W_{\vec{l}}\).

virtual void	regular (size_t level, double T)
	Creates a regular sparse grid for a certain level \( n \), i.e., \( V_n^{(1)} = \bigoplus_{\|\vec{l}\|_1 \leq n+d-1} W_{\vec{l}}\).

virtual void	regularInter (size_t level, const std::set< std::set< size_t > > &terms, double T)
	Creates a regular sparse grid for a certain level \( n \), i.e., \( V_n^{(1)} = \bigoplus_{\|\vec{l}\|_1 \leq n+d-1} W_{\vec{l}}\).

virtual void	truncated (size_t level, size_t l_user)
	Creates a grid which doesn't contain the fullgrids with li<l_user, for any li level_t.

virtual	~GridGenerator ()
	Destructor.

Detailed Description

Abstract class that defines the interfaces for the different grid's GridGenerators.

Constructor & Destructor Documentation

◆ GridGenerator()

sgpp::base::GridGenerator::GridGenerator ( )

inline

Constructor.

◆ ~GridGenerator()

virtual sgpp::base::GridGenerator::~GridGenerator ( )

inlinevirtual

Destructor.

Member Function Documentation

◆ anisotropicFull()

virtual void sgpp::base::GridGenerator::anisotropicFull ( std::vector< size_t > dimlevels )

inlinevirtual

Creates an anisotropicFull Grid for certain level vector, for example [2,3,1] results in a 3x7x1 grid.

Reimplemented in sgpp::base::StandardGridGenerator.

Referenced by sgpp::datadriven::GridFactory::createGrid().

◆ cliques() [1/2]

virtual void sgpp::base::GridGenerator::cliques	(	size_t	level,
		size_t	clique_size
	)

pure virtual

Creates a sparse grid with fully connected cliques.

Parameters

level	Grid level
clique_size	clique size

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

◆ cliques() [2/2]

virtual void sgpp::base::GridGenerator::cliques	(	size_t	level,
		size_t	clique_size,
		double	T
	)

inlinevirtual

Creates a sparse grid with fully connected cliques.

Parameters

level	Grid level
clique_size	clique size
T	modifier for subgrid selection, T = 0 implies standard sparse grid. For further information see Griebel and Knapek's paper optimized tensor-product approximation spaces

Reimplemented in sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, and sgpp::base::StandardGridGenerator.

◆ coarsen()

virtual void sgpp::base::GridGenerator::coarsen	(	CoarseningFunctor &	func,
		std::vector< size_t > *	removedSeq
	)

pure virtual

Coarsens a grid according to the settings of the CoarseningFunctor func.

Parameters

func	pointer to coarsening functor
removedSeq	pointer to vector to append the seq numbers of coarsened grid points to.

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

◆ coarsenNFirstOnly()

virtual void sgpp::base::GridGenerator::coarsenNFirstOnly	(	CoarseningFunctor &	func,
		size_t	numFirstOnly,
		std::vector< size_t > *	removedSeq,
		size_t	minIndexConsidered
	)

pure virtual

Coarsens a grid according to the settings of the CoarseningFunctor func.

Only numFirstOnly first grid points are checked for coarsening.

Parameters

func	pointer to coarsening functor
numFirstOnly	max. number grid points to be coarsened
removedSeq	pointer to vector to append the seq numbers of coarsened grid points to.
minIndexConsidered	Minimum index of grid points that will be coarsened

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

Referenced by sgpp::pde::PDESolver::coarsenInitialGridSurplus().

◆ full()

virtual void sgpp::base::GridGenerator::full ( size_t level )

pure virtual

Creates a full grid for a certain level \( n \), i.e., \( V_n = *\bigoplus_{|\vec{l}|_\infty *\leq n} W_{\vec{l}}\).

Parameters

level Grid level

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

◆ getNumberOfRefinablePoints()

virtual size_t sgpp::base::GridGenerator::getNumberOfRefinablePoints ( )

pure virtual

Returns the number of points on the grid that can be refined in the next iteration.

Returns: the number of points on the grid that can be refined

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

Referenced by sgpp::pde::PDESolver::refineInitialGridSurplus(), and sgpp::pde::PDESolver::refineInitialGridSurplusSubDomain().

◆ getNumberOfRefinablePointsToMaxLevel()

virtual size_t sgpp::base::GridGenerator::getNumberOfRefinablePointsToMaxLevel ( size_t maxLevel )

pure virtual

Returns the number of points on the grid that can be refined in the next iteration additionally a maximum level for refinement is taken into account.

Parameters

maxLevel no points on higher levels than maxLevel will be created

Returns: the number of points on the grid that can be refined

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

Referenced by sgpp::pde::PDESolver::refineInitialGridSurplusToMaxLevel(), and sgpp::pde::PDESolver::refineInitialGridSurplusToMaxLevelSubDomain().

◆ getNumberOfRemovablePoints()

virtual size_t sgpp::base::GridGenerator::getNumberOfRemovablePoints ( )

pure virtual

Returns the number of points on the grid that can be removed in the next iteration.

Returns: the number of points on the grid that can be removed

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

Referenced by sgpp::pde::PDESolver::coarsenInitialGridSurplus().

◆ refine()

virtual void sgpp::base::GridGenerator::refine	(	RefinementFunctor &	func,
		std::vector< size_t > *	addedPoints = `nullptr`
	)

pure virtual

Refines a grid according to the settings of the RefinementFunctor func.

Parameters

func	reference to refinement functor
addedPoints	pointer to vector to add newly created grid points to

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

Referenced by doAllRefinements(), doAllRefinements(), doAllRefinements(), doAllRefinements(), sgpp::datadriven::AlgorithmAdaBoostBase::doRefinement(), sgpp::datadriven::RefinementHandler::handleDataAndZeroBasedRefinement(), sgpp::datadriven::RefinementHandler::handleSurplusBasedRefinement(), sgpp::base::Grid::refine(), sgpp::pde::PDESolver::refineInitialGridSurplus(), sgpp::pde::PDESolver::refineInitialGridSurplusSubDomain(), sgpp::datadriven::SparseGridDensityEstimator::train(), sgpp::datadriven::LearnerSGDE::train(), and sgpp::datadriven::LearnerBaseSP::train().

◆ refineInter()

virtual void sgpp::base::GridGenerator::refineInter	(	RefinementFunctor &	func,
		const std::set< std::set< size_t > > &	interactions
	)

inlinevirtual

Refines a grid according to the settings of the RefinementFunctor func.

Does not create any interactions, that are not in the list of allowed interactions.

Refines the grid, but only adds interactions that are contained in the set interactions, i.e. only desired interactions. Each desired interaction is encoded as a vector which contains all desired interactions. For example, if we want to include grid points that model an interaction between the first and the second predictor, we would include the vector [1,2] in interactions.

Parameters

func	pointer to refinement functor
interactions	allowed interactions

Reimplemented in sgpp::base::StandardGridGenerator.

◆ refineMaxLevel()

virtual void sgpp::base::GridGenerator::refineMaxLevel	(	RefinementFunctor &	func,
		size_t	maxLevel
	)

pure virtual

Refines a grid according to the settings of the RefinementFunctor func.

additionally a maximum level for refinement is taken into account

Parameters

func	pointer to refinement functor
maxLevel	no points on higher levels than maxLevel will be created

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

Referenced by sgpp::pde::PDESolver::refineInitialGridSurplusToMaxLevel(), and sgpp::pde::PDESolver::refineInitialGridSurplusToMaxLevelSubDomain().

◆ regular() [1/2]

virtual void sgpp::base::GridGenerator::regular ( size_t level )

pure virtual

Creates a regular sparse grid for a certain level \( n \), i.e., \( *V_n^{(1)} = *\bigoplus_{|\vec{l}|_1 \leq n+d-1} W_{\vec{l}}\).

Parameters

level Grid level

Implemented in sgpp::base::BoundaryGridGenerator, sgpp::base::GeneralizedBoundaryGridGenerator, sgpp::base::L0BoundaryGridGenerator, sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, sgpp::base::SquareRootGridGenerator, sgpp::base::StandardGridGenerator, and sgpp::base::StretchedBoundaryGridGenerator.

Referenced by sgpp::pde::HeatEquationSolver::constructGrid(), sgpp::pde::PoissonEquationSolver::constructGrid(), sgpp::pde::HeatEquationSolverWithStretching::constructGrid(), sgpp::datadriven::GridFactory::createGrid(), sgpp::datadriven::AlgorithmAdaBoostBase::doAdaBoostR2(), sgpp::datadriven::AlgorithmAdaBoostBase::doAdaBoostRT(), sgpp::datadriven::AlgorithmAdaBoostBase::doDiscreteAdaBoost(), sgpp::datadriven::AlgorithmAdaBoostBase::doRealAdaBoost(), sgpp::optimization::IterativeGridGeneratorFuzzyRitterNovak::generate(), sgpp::optimization::IterativeGridGeneratorLinearSurplus::generate(), sgpp::optimization::IterativeGridGeneratorRitterNovak::generate(), hpx_main(), sgpp::datadriven::LearnerBaseSP::InitializeGrid(), main(), and main().

◆ regular() [2/2]

virtual void sgpp::base::GridGenerator::regular	(	size_t	level,
		double	T
	)

inlinevirtual

Creates a regular sparse grid for a certain level \( n \), i.e., \( *V_n^{(1)} = *\bigoplus_{|\vec{l}|_1 \leq n+d-1} W_{\vec{l}}\).

If the used grid doesn't support the parameter t, t = 0 is used instead.

Parameters

level	Grid level
T	modifier for subgrid selection, T = 0 implies standard sparse grid. For further information see Griebel and Knapek's paper optimized tensor-product approximation spaces

Reimplemented in sgpp::base::PeriodicGridGenerator, sgpp::base::PrewaveletGridGenerator, and sgpp::base::StandardGridGenerator.

◆ regularInter()

virtual void sgpp::base::GridGenerator::regularInter	(	size_t	level,
		const std::set< std::set< size_t > > &	terms,
		double	T
	)

inlinevirtual

Creates a regular sparse grid for a certain level \( n \), i.e., \( *V_n^{(1)} = *\bigoplus_{|\vec{l}|_1 \leq n+d-1} W_{\vec{l}}\).

If the used grid doesn't support the parameter t, t = 0 is used instead. This grid generator allows the creation of regular grids that only contain some interaction terms.

Parameters

level	Grid level
T	modifier for subgrid selection, T = 0 implies standard sparse grid. For further information see Griebel and Knapek's paper optimized tensor-product approximation spaces
terms	determines the included interaction terms.

Reimplemented in sgpp::base::StandardGridGenerator.

Referenced by sgpp::datadriven::GridFactory::createGrid().

◆ truncated()

virtual void sgpp::base::GridGenerator::truncated	(	size_t	level,
		size_t	l_user
	)

inlinevirtual

Creates a grid which doesn't contain the fullgrids with li<l_user, for any li level_t.

Reimplemented in sgpp::base::GeneralizedBoundaryGridGenerator.

The documentation for this class was generated from the following file:

base/src/sgpp/base/grid/generation/GridGenerator.hpp
