abstract base class for all types grids used in sgpp the class gives pure virtual function definitions that have to be implemented by all types of grids More...

#include <Grid.hpp>

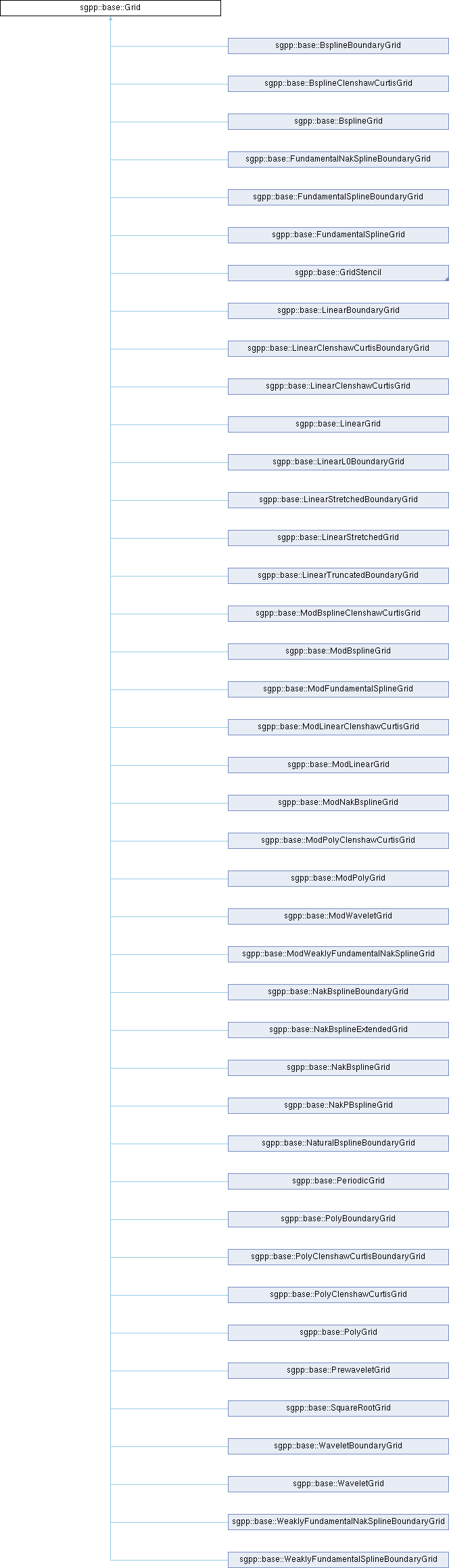

Inheritance diagram for sgpp::base::Grid:

Public Member Functions
Grid *	clone ()
	copies a grid

Grid *	createGridOfEquivalentType (size_t numDims)
	creates an equivalent grid without copying the grid points

std::vector< size_t >	getAlgorithmicDimensions ()
	returns the algorithmic dimensions (the dimensions in which the Up Down operations should be applied)

virtual SBasis &	getBasis ()=0
	Returns the Basis class associated with the grid.

virtual BoundingBox &	getBoundingBox ()
	gets a reference to the GridStorage's BoundingsBox object

size_t	getDimension () const
	Returns the number of dimensions.

virtual GridGenerator &	getGenerator ()=0

size_t	getSize () const
	Returns the number of points on the grid.

virtual GridStorage &	getStorage ()
	gets a reference to the GridStorage object

virtual Stretching &	getStretching ()
	gets a reference to the GridStorage's Stretching object

virtual sgpp::base::GridType	getType ()=0
	Returns a string that identifies the grid type uniquely.

std::string	getTypeAsString ()
	Returns a string that identifies the grid type uniquely.

sgpp::base::GridType	getZeroBoundaryType ()
	Returns the grid type that corresponds to the actual type but does no boundary treatment.

	Grid (const Grid &other)=delete
	delete copy constructor

void	insertPoint (size_t dim, unsigned int levels[], unsigned int indices[], bool isLeaf)
	Insert one point to the grid.

void	refine (DataVector &vector, int numOfPoints)
	Refine grid Refine the given number of points on the grid according to the vector.

std::string	serialize (int version=SERIALIZATION_VERSION)
	Serializes grid to a string.

virtual void	serialize (std::ostream &ostr, int version=SERIALIZATION_VERSION)
	Serializes the grid.

void	serialize (std::string &ostr, int version=SERIALIZATION_VERSION)
	Serializes grid to a string.

void	setAlgorithmicDimensions (std::vector< size_t > newAlgoDims)
	sets the algorithmic dimensions (the dimensions in which the Up Down operations should be applied)

virtual void	setBoundingBox (BoundingBox &boundingBox)
	sets the GridStorage's BoundingsBox

virtual void	setStretching (Stretching &stretching)
	sets the GridStorage's Stretching pointer to a Stretching object

virtual	~Grid ()
	Desctructor.

Static Public Member Functions
static Grid *	createBsplineBoundaryGrid (size_t dim, size_t degree, level_t boundaryLevel=1)
	creates a B-spline trapezoid boundary grid

static Grid *	createBsplineClenshawCurtisGrid (size_t dim, size_t degree, level_t boundaryLevel=1)
	creates a B-spline Clenshaw-Curtis grid

static Grid *	createBsplineGrid (size_t dim, size_t degree)
	creates a B-spline grid

static Grid *	createFundamentalNakSplineBoundaryGrid (size_t dim, size_t degree, level_t boundaryLevel=1)

static Grid *	createFundamentalSplineBoundaryGrid (size_t dim, size_t degree, level_t boundaryLevel=1)

static Grid *	createFundamentalSplineGrid (size_t dim, size_t degree)
	creates a fundamental spline grid

static Grid *	createGrid (RegularGridConfiguration gridConfig)
	creates a grid defined by the grid configuration

static Grid *	createLinearBoundaryGrid (size_t dim, level_t boundaryLevel=1)
	creates a linear boundary grid

static Grid *	createLinearClenshawCurtisBoundaryGrid (size_t dim, level_t boundaryLevel=1)
	creates a linear Clenshaw-Curtis boundary grid

static Grid *	createLinearClenshawCurtisGrid (size_t dim)
	creates a linear Clenshaw-Curtis grid

static Grid *	createLinearGrid (size_t dim)
	Creates and returns a grid without grid points on the boundary (zero boundary conditions) with piecewise linear basis functions.

static Grid *	createLinearGridStencil (size_t dim)
	creates a stencil for a linear grid (without boundaries)

static Grid *	createLinearStretchedBoundaryGrid (size_t dim)
	creates a linearstretched truncated boundary grid

static Grid *	createLinearStretchedGrid (size_t dim)
	creates a linear stretched grid without boundaries

static Grid *	createLinearTruncatedBoundaryGrid (size_t dim)
	creates a truncated boundary grid=contains all the gridpoints of the fullgrids which have \(\|l\|<level and li>=l_user\)

static Grid *	createModBsplineClenshawCurtisGrid (size_t dim, size_t degree)
	creates a modified B-spline Clenshaw-Curtis grid

static Grid *	createModBsplineGrid (size_t dim, size_t degree)
	creates a modified B-spline grid

static Grid *	createModFundamentalSplineGrid (size_t dim, size_t degree)
	creates a modified fundamental spline grid

static Grid *	createModLinearClenshawCurtisGrid (size_t dim)
	creates a modified linear Clenshaw-Curtis grid

static Grid *	createModLinearGrid (size_t dim)
	creates a modified linear grid

static Grid *	createModLinearGridStencil (size_t dim)
	creates a stencil for a modified linear grid (without boundaries)

static Grid *	createModNakBsplineGrid (size_t dim, size_t degree)

static Grid *	createModPolyClenshawCurtisGrid (size_t dim, size_t degree)
	creates a modified poly grid with clenshaw curtis points

static Grid *	createModPolyGrid (size_t dim, size_t degree)
	creates a modified polynomial grid

static Grid *	createModWaveletGrid (size_t dim)
	creates a modified wavelet grid

static Grid *	createModWeaklyFundamentalNakSplineGrid (size_t dim, size_t degree)

static Grid *	createNakBsplineBoundaryGrid (size_t dim, size_t degree, level_t boundaryLevel=1)

static Grid *	createNakBsplineExtendedGrid (size_t dim, size_t degree)
	creates a not a knot B-Spline extended grid

static Grid *	createNakBsplineGrid (size_t dim, size_t degree)
	creates a not a knot B-Spline grid

static Grid *	createNakPBsplineGrid (size_t dim, size_t degree)
	creates a not a knot polynomial B-Spline extended grid

static Grid *	createNaturalBsplineBoundaryGrid (size_t dim, size_t degree, level_t boundaryLevel=1)
	creates a not a knot B-Spline boundary grid

static Grid *	createPeriodicGrid (size_t dim)
	creates a periodic grid

static Grid *	createPolyBoundaryGrid (size_t dim, size_t degree, level_t boundaryLevel=1)
	creates a polynomial grid with truncated boundary

static Grid *	createPolyClenshawCurtisBoundaryGrid (size_t dim, size_t degree, level_t boundaryLevel=1)
	creates a poly Clenshaw Curtis boundary grid with clenshaw curtis points

static Grid *	createPolyClenshawCurtisGrid (size_t dim, size_t degree)
	creates a poly grid with clenshaw curtis points

static Grid *	createPolyGrid (size_t dim, size_t degree)
	creates a polynomial grid

static Grid *	createPrewaveletGrid (size_t dim)
	creates a prewavelet grid

static Grid *	createSquareRootGrid (size_t dim)
	creates a square root grid (h-grid)

static Grid *	createWaveletBoundaryGrid (size_t dim, level_t boundaryLevel=1)
	creates a wavelet trapezoid boundary grid

static Grid *	createWaveletGrid (size_t dim)
	creates a wavelet grid

static Grid *	createWeaklyFundamentalNakSplineBoundaryGrid (size_t dim, size_t degree, level_t boundaryLevel=1)

static Grid *	createWeaklyFundamentalSplineBoundaryGrid (size_t dim, size_t degree, level_t boundaryLevel=1)

static GridType	stringToGridType (const std::string &gridType)
	Conversion from string to grid type.

static Grid *	unserialize (const std::string &istr)
	reads a grid out of a string

static Grid *	unserialize (std::istream &istr)
	reads a grid out of a stream

static Grid *	unserializeFromFile (std::string filename)
	opens a file given by name and reads a grid out of the stored string @ param filename name of the file

Protected Types
typedef Grid (	Factory) (std::istream &)

typedef std::map< std::string, Grid::Factory >	factoryMap

typedef std::map< sgpp::base::GridType, std::string >	gridTypeVerboseMap

Protected Member Functions
	Grid (BoundingBox &boundingBox)
	Constructor initializing the grid storage with the given BoundingBox.

	Grid (size_t dim)
	Constructor initializing the grid storage with the given dimensionality.

	Grid (std::istream &istr)
	This constructor creates a new GridStorage out of the stream.

	Grid (Stretching &stretching)
	Constructor initializing the grid storage with the given Stretching.

Static Protected Member Functions
static Grid *	nullFactory (std::istream &)
	Factory for everything we don't know.

Protected Attributes
GridStorage	storage
	GridStorage object of the grid.

Detailed Description

abstract base class for all types grids used in sgpp the class gives pure virtual function definitions that have to be implemented by all types of grids

Member Typedef Documentation

◆ Factory

typedef Grid *(* sgpp::base::Grid::Factory) (std::istream &)

protected

◆ factoryMap

typedef std::map<std::string, Grid::Factory> sgpp::base::Grid::factoryMap

protected

◆ gridTypeVerboseMap

typedef std::map<sgpp::base::GridType, std::string> sgpp::base::Grid::gridTypeVerboseMap

protected

Constructor & Destructor Documentation

◆ Grid() [1/5]

sgpp::base::Grid::Grid ( const Grid & other )

delete

delete copy constructor

Parameters

other

References createGrid().

◆ Grid() [2/5]

sgpp::base::Grid::Grid ( std::istream & istr )

explicitprotected

This constructor creates a new GridStorage out of the stream.

For derived classes create an own constructor wich takes a std::istream and calls this function. Add your own static unserialize function and add it in typeMap().

Parameters

istr	inputstream that contains the grid information

◆ Grid() [3/5]

sgpp::base::Grid::Grid ( size_t dim )

explicitprotected

Constructor initializing the grid storage with the given dimensionality.

Parameters

dim	dimensionality

◆ Grid() [4/5]

sgpp::base::Grid::Grid ( BoundingBox & boundingBox )

explicitprotected

Constructor initializing the grid storage with the given BoundingBox.

Parameters

boundingBox BoundingBox of the grid

◆ Grid() [5/5]

sgpp::base::Grid::Grid ( Stretching & stretching )

explicitprotected

Constructor initializing the grid storage with the given Stretching.

Parameters

stretching Stretching of the grid

◆ ~Grid()

sgpp::base::Grid::~Grid ( )

virtual

Desctructor.

Member Function Documentation

◆ clone()

Grid * sgpp::base::Grid::clone ( )

copies a grid

References createGridOfEquivalentType(), getDimension(), and storage.

Referenced by sgpp::datadriven::LearnerSGDEOnOffParallel::LearnerSGDEOnOffParallel(), sgpp::datadriven::OperationDensityMargTo1D::margToDimXs(), sgpp::datadriven::VisualizerDensityEstimation::storeGrid(), sgpp::datadriven::VisualizerDensityEstimation::storeHeatmapJson(), and sgpp::datadriven::VisualizerDensityEstimation::storeHeatmapJson().

◆ createBsplineBoundaryGrid()

Grid * sgpp::base::Grid::createBsplineBoundaryGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

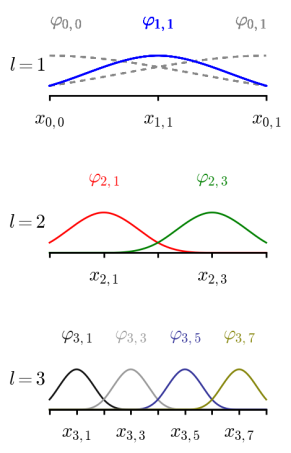

creates a B-spline trapezoid boundary grid

Level 4* sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the B-spline degree
boundaryLevel	on which level the boundary grid points and basis functions should be added; the default is 1, which results in a grid with the same resolution on the boundary as on the main axis

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createBsplineClenshawCurtisGrid()

Grid * sgpp::base::Grid::createBsplineClenshawCurtisGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

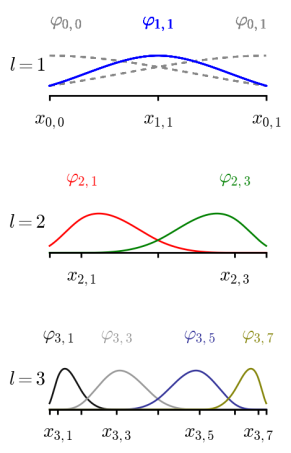

creates a B-spline Clenshaw-Curtis grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the B-spline degree
boundaryLevel	on which level the boundary grid points and basis functions should be added; the default is 1, which results in a grid with the same resolution on the boundary as on the main axis

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createBsplineGrid()

Grid * sgpp::base::Grid::createBsplineGrid	(	size_t	dim,
		size_t	degree
	)

static

creates a B-spline grid

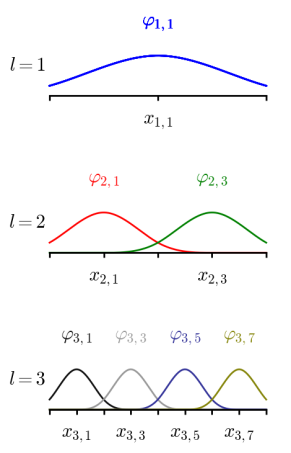

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the B-spline degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createFundamentalNakSplineBoundaryGrid()

Grid * sgpp::base::Grid::createFundamentalNakSplineBoundaryGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createFundamentalSplineBoundaryGrid()

Grid * sgpp::base::Grid::createFundamentalSplineBoundaryGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createFundamentalSplineGrid()

Grid * sgpp::base::Grid::createFundamentalSplineGrid	(	size_t	dim,
		size_t	degree
	)

static

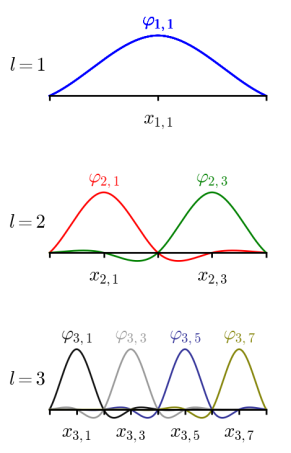

creates a fundamental spline grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the B-spline degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createGrid()

Grid * sgpp::base::Grid::createGrid ( RegularGridConfiguration gridConfig )

static

creates a grid defined by the grid configuration

Parameters

gridConfig grid configuration

Returns: grid

Referenced by sgpp::datadriven::SparseGridDensityEstimator::createRegularGrid(), Grid(), and sgpp::base::OperationArbitraryBoundaryHierarchisation::OperationArbitraryBoundaryHierarchisation().

◆ createGridOfEquivalentType()

Grid * sgpp::base::Grid::createGridOfEquivalentType ( size_t numDims )

creates an equivalent grid without copying the grid points

Parameters

numDims number of dimensions

Referenced by clone(), sgpp::datadriven::OperationDensityConditional::doConditional(), and sgpp::datadriven::OperationDensityMarginalize::doMarginalize().

◆ createLinearBoundaryGrid()

Grid * sgpp::base::Grid::createLinearBoundaryGrid	(	size_t	dim,
		level_t	boundaryLevel = `1`
	)

static

creates a linear boundary grid

"Level 4 sparse grid with boundaryLevel = 0"

"Level 4 sparse grid with boundaryLevel = 1"

"Level 4 sparse grid with boundaryLevel = 2"

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
boundaryLevel	on which level the boundary grid points and basis functions should be added; the default is 1, which results in a grid with the same resolution on the boundary as on the main axis

Returns: grid

Referenced by sgpp::datadriven::GridFactory::createGrid(), createGrid(), createGridOfEquivalentType(), sgpp::datadriven::LearnerSGDE::createRegularGrid(), sgpp::datadriven::AlgorithmAdaBoostBase::doAdaBoostR2(), sgpp::datadriven::AlgorithmAdaBoostBase::doAdaBoostRT(), sgpp::datadriven::AlgorithmAdaBoostBase::doDiscreteAdaBoost(), and sgpp::datadriven::AlgorithmAdaBoostBase::doRealAdaBoost().

◆ createLinearClenshawCurtisBoundaryGrid()

Grid * sgpp::base::Grid::createLinearClenshawCurtisBoundaryGrid	(	size_t	dim,
		level_t	boundaryLevel = `1`
	)

static

creates a linear Clenshaw-Curtis boundary grid

Parameters

dim	the grid's dimension
boundaryLevel	level of the boundary

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createLinearClenshawCurtisGrid()

Grid * sgpp::base::Grid::createLinearClenshawCurtisGrid ( size_t dim )

static

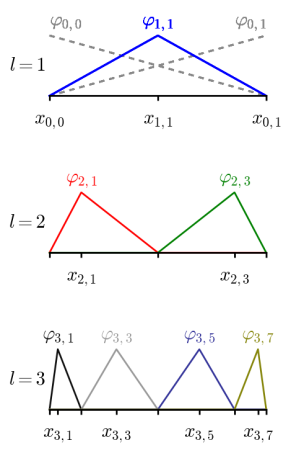

creates a linear Clenshaw-Curtis grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createLinearGrid()

Grid * sgpp::base::Grid::createLinearGrid ( size_t dim )

static

Creates and returns a grid without grid points on the boundary (zero boundary conditions) with piecewise linear basis functions.

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

◆ createLinearGridStencil()

Grid * sgpp::base::Grid::createLinearGridStencil ( size_t dim )

static

creates a stencil for a linear grid (without boundaries)

Level 4 sparse grid

Parameters

dim	the grid's dimension

Returns: grid

◆ createLinearStretchedBoundaryGrid()

Grid * sgpp::base::Grid::createLinearStretchedBoundaryGrid ( size_t dim )

static

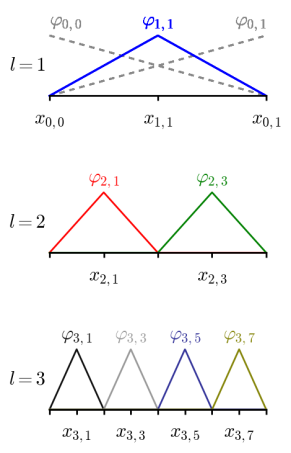

creates a linearstretched truncated boundary grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createLinearStretchedGrid()

Grid * sgpp::base::Grid::createLinearStretchedGrid ( size_t dim )

static

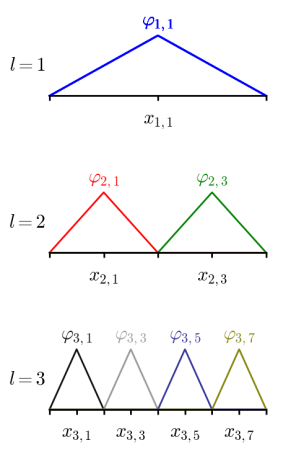

creates a linear stretched grid without boundaries

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createLinearTruncatedBoundaryGrid()

Grid * sgpp::base::Grid::createLinearTruncatedBoundaryGrid ( size_t dim )

static

creates a truncated boundary grid=contains all the gridpoints of the fullgrids which have \(|l|<level and li>=l_user\)

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModBsplineClenshawCurtisGrid()

Grid * sgpp::base::Grid::createModBsplineClenshawCurtisGrid	(	size_t	dim,
		size_t	degree
	)

static

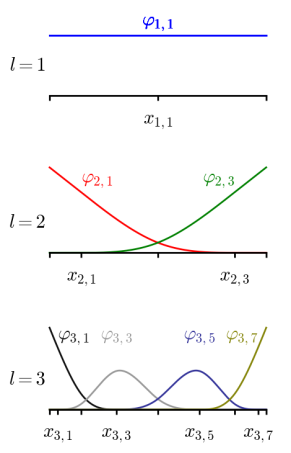

creates a modified B-spline Clenshaw-Curtis grid

"Level 4 sparse grid"

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the B-spline degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModBsplineGrid()

Grid * sgpp::base::Grid::createModBsplineGrid	(	size_t	dim,
		size_t	degree
	)

static

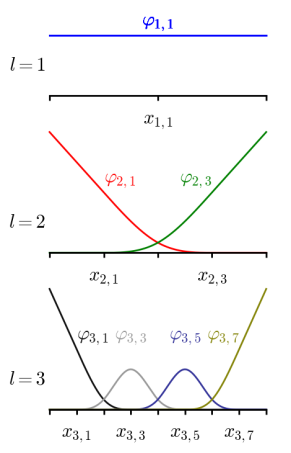

creates a modified B-spline grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the B-spline degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModFundamentalSplineGrid()

Grid * sgpp::base::Grid::createModFundamentalSplineGrid	(	size_t	dim,
		size_t	degree
	)

static

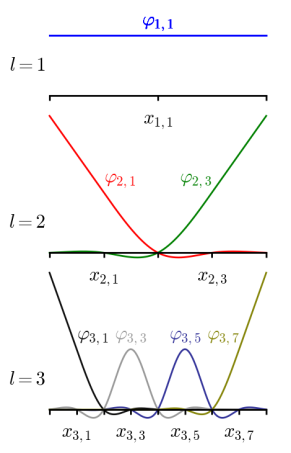

creates a modified fundamental spline grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the B-spline degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModLinearClenshawCurtisGrid()

Grid * sgpp::base::Grid::createModLinearClenshawCurtisGrid ( size_t dim )

static

creates a modified linear Clenshaw-Curtis grid

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModLinearGrid()

Grid * sgpp::base::Grid::createModLinearGrid ( size_t dim )

static

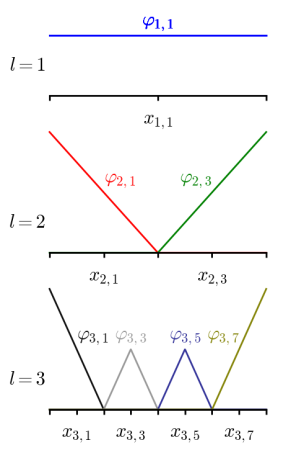

creates a modified linear grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

Referenced by sgpp::datadriven::GridFactory::createGrid(), createGrid(), createGridOfEquivalentType(), sgpp::datadriven::LearnerSGD::createRegularGrid(), sgpp::datadriven::LearnerSVM::createRegularGrid(), sgpp::datadriven::AlgorithmAdaBoostBase::doAdaBoostR2(), sgpp::datadriven::AlgorithmAdaBoostBase::doAdaBoostRT(), sgpp::datadriven::AlgorithmAdaBoostBase::doDiscreteAdaBoost(), sgpp::datadriven::AlgorithmAdaBoostBase::doRealAdaBoost(), hpx_main(), main(), and sgpp::datadriven::LearnerSGDE::trainOnline().

◆ createModLinearGridStencil()

Grid * sgpp::base::Grid::createModLinearGridStencil ( size_t dim )

static

creates a stencil for a modified linear grid (without boundaries)

Level 4 sparse grid

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModNakBsplineGrid()

Grid * sgpp::base::Grid::createModNakBsplineGrid	(	size_t	dim,
		size_t	degree
	)

static

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModPolyClenshawCurtisGrid()

Grid * sgpp::base::Grid::createModPolyClenshawCurtisGrid	(	size_t	dim,
		size_t	degree
	)

static

creates a modified poly grid with clenshaw curtis points

Parameters

dim	the grid's dimension
degree	the polynom's max. degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModPolyGrid()

Grid * sgpp::base::Grid::createModPolyGrid	(	size_t	dim,
		size_t	degree
	)

static

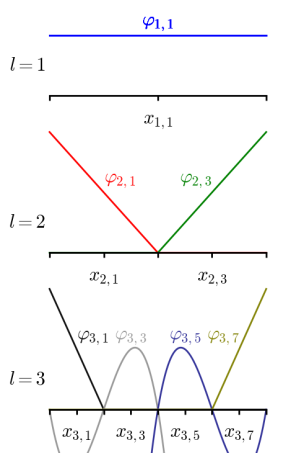

creates a modified polynomial grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the polynom's max. degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModWaveletGrid()

Grid * sgpp::base::Grid::createModWaveletGrid ( size_t dim )

static

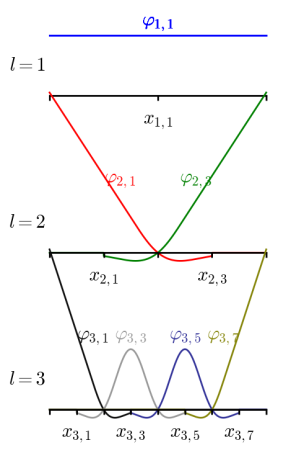

creates a modified wavelet grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createModWeaklyFundamentalNakSplineGrid()

Grid * sgpp::base::Grid::createModWeaklyFundamentalNakSplineGrid	(	size_t	dim,
		size_t	degree
	)

static

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createNakBsplineBoundaryGrid()

Grid * sgpp::base::Grid::createNakBsplineBoundaryGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createNakBsplineExtendedGrid()

Grid * sgpp::base::Grid::createNakBsplineExtendedGrid	(	size_t	dim,
		size_t	degree
	)

static

creates a not a knot B-Spline extended grid

Parameters

dim	the grid's dimension
degree	the B-spline degree

Returns: grid

Referenced by sgpp::datadriven::PolynomialChaosExpansion::adaptiveQuadratureWeighted(), createGrid(), createGridOfEquivalentType(), and sgpp::datadriven::PolynomialChaosExpansion::sparseGridQuadrature().

◆ createNakBsplineGrid()

Grid * sgpp::base::Grid::createNakBsplineGrid	(	size_t	dim,
		size_t	degree
	)

static

creates a not a knot B-Spline grid

Parameters

dim	the grid's dimension
degree	the B-spline degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createNakPBsplineGrid()

Grid * sgpp::base::Grid::createNakPBsplineGrid	(	size_t	dim,
		size_t	degree
	)

static

creates a not a knot polynomial B-Spline extended grid

Parameters

dim	the grid's dimension
degree	the B-spline degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createNaturalBsplineBoundaryGrid()

Grid * sgpp::base::Grid::createNaturalBsplineBoundaryGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

creates a not a knot B-Spline boundary grid

Parameters

dim	the grid's dimension
degree	the B-spline degree
boundaryLevel	the level of the boundary grid

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createPeriodicGrid()

Grid * sgpp::base::Grid::createPeriodicGrid ( size_t dim )

static

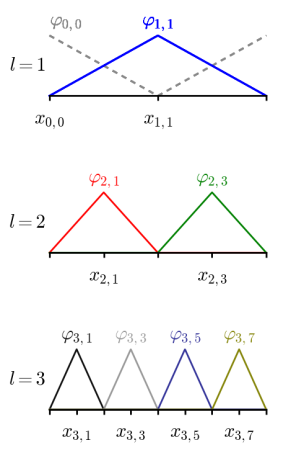

creates a periodic grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createPolyBoundaryGrid()

Grid * sgpp::base::Grid::createPolyBoundaryGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

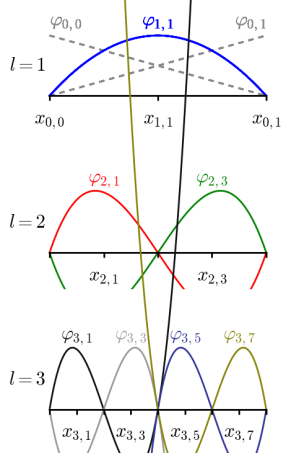

creates a polynomial grid with truncated boundary

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the polynom's max. degree
boundaryLevel	on which level the boundary grid points and basis functions should be added; the default is 1, which results in a grid with the same resolution on the boundary as on the main axis

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createPolyClenshawCurtisBoundaryGrid()

Grid * sgpp::base::Grid::createPolyClenshawCurtisBoundaryGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

creates a poly Clenshaw Curtis boundary grid with clenshaw curtis points

Parameters

dim	the grid's dimension
degree	the polynom's max. degree
boundaryLevel	level at which boundary points are added

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createPolyClenshawCurtisGrid()

Grid * sgpp::base::Grid::createPolyClenshawCurtisGrid	(	size_t	dim,
		size_t	degree
	)

static

creates a poly grid with clenshaw curtis points

Parameters

dim	the grid's dimension
degree	the polynom's max. degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createPolyGrid()

Grid * sgpp::base::Grid::createPolyGrid	(	size_t	dim,
		size_t	degree
	)

static

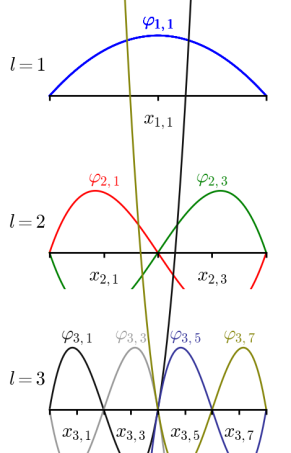

creates a polynomial grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
degree	the polynom's max. degree

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createPrewaveletGrid()

Grid * sgpp::base::Grid::createPrewaveletGrid ( size_t dim )

static

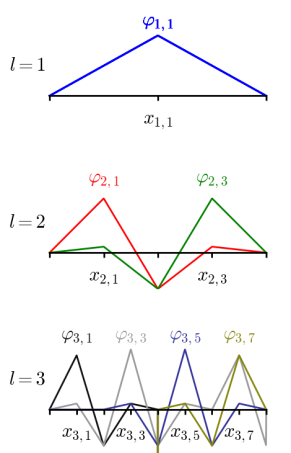

creates a prewavelet grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createSquareRootGrid()

Grid * sgpp::base::Grid::createSquareRootGrid ( size_t dim )

static

creates a square root grid (h-grid)

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createWaveletBoundaryGrid()

Grid * sgpp::base::Grid::createWaveletBoundaryGrid	(	size_t	dim,
		level_t	boundaryLevel = `1`
	)

static

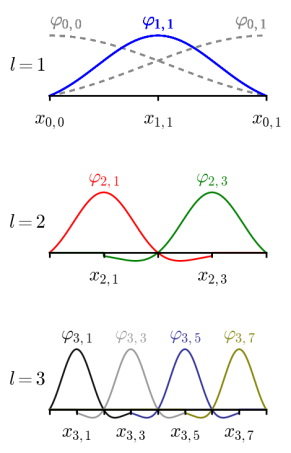

creates a wavelet trapezoid boundary grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension
boundaryLevel	on which level the boundary grid points and basis functions should be added; the default is 1, which results in a grid with the same resolution on the boundary as on the main axis

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createWaveletGrid()

Grid * sgpp::base::Grid::createWaveletGrid ( size_t dim )

static

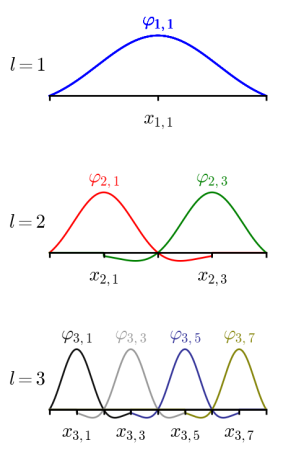

creates a wavelet grid

Level 4 sparse grid

"Hierarchical basis functions up to level 3"

Parameters

dim	the grid's dimension

Returns: grid

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createWeaklyFundamentalNakSplineBoundaryGrid()

Grid * sgpp::base::Grid::createWeaklyFundamentalNakSplineBoundaryGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

Referenced by createGrid(), and createGridOfEquivalentType().

◆ createWeaklyFundamentalSplineBoundaryGrid()

Grid * sgpp::base::Grid::createWeaklyFundamentalSplineBoundaryGrid	(	size_t	dim,
		size_t	degree,
		level_t	boundaryLevel = `1`
	)

static

Referenced by createGrid(), and createGridOfEquivalentType().

◆ getAlgorithmicDimensions()

std::vector< size_t > sgpp::base::Grid::getAlgorithmicDimensions ( )

returns the algorithmic dimensions (the dimensions in which the Up Down operations should be applied)

Returns: the algorithmic dimensions

References sgpp::base::HashGridStorage::getAlgorithmicDimensions(), and storage.

Referenced by sgpp::base::DirichletGridConverter::buildInnerGridWithCoefs(), and sgpp::base::DirichletGridConverter::rebuildInnerGridWithCoefs().

◆ getBasis()

virtual SBasis & sgpp::base::Grid::getBasis ( )

pure virtual

Returns the Basis class associated with the grid.

Returns: Basis class associated with the grid

References insertPoint().

◆ getBoundingBox()

BoundingBox & sgpp::base::Grid::getBoundingBox ( )

virtual

gets a reference to the GridStorage's BoundingsBox object

Returns: reference to the GridStorage's BoundingsBox object

References sgpp::base::HashGridStorage::getBoundingBox(), and storage.

Referenced by sgpp::base::DirichletGridConverter::buildInnerGridWithCoefs(), sgpp::pde::HeatEquationSolver::constructGrid(), sgpp::pde::PoissonEquationSolver::constructGrid(), sgpp::base::OperationQuadratureMC::doQuadrature(), sgpp::base::OperationQuadratureMC::doQuadratureFunc(), sgpp::base::OperationQuadratureMC::doQuadratureL2Error(), sgpp::pde::PoissonEquationSolver::initGridWithExpHeat(), sgpp::pde::PoissonEquationSolver::initGridWithExpHeatFullDomain(), sgpp::base::GridPrinter::printGrid(), and sgpp::pde::PDESolver::setGrid().

◆ getDimension()

size_t sgpp::base::Grid::getDimension ( ) const

Returns the number of dimensions.

Returns: the number of dimensions

References sgpp::base::HashGridStorage::getDimension(), and storage.

◆ getGenerator()

virtual GridGenerator & sgpp::base::Grid::getGenerator ( )

pure virtual

Returns: reference to a GridGenerator object

Referenced by sgpp::pde::PDESolver::coarsenInitialGridSurplus(), sgpp::pde::HeatEquationSolver::constructGrid(), sgpp::pde::PoissonEquationSolver::constructGrid(), sgpp::pde::HeatEquationSolverWithStretching::constructGrid(), sgpp::datadriven::GridFactory::createGrid(), createGridOfEquivalentType(), sgpp::datadriven::AlgorithmAdaBoostBase::doAdaBoostR2(), sgpp::datadriven::AlgorithmAdaBoostBase::doAdaBoostRT(), sgpp::datadriven::AlgorithmAdaBoostBase::doDiscreteAdaBoost(), sgpp::datadriven::AlgorithmAdaBoostBase::doRealAdaBoost(), sgpp::datadriven::AlgorithmAdaBoostBase::doRefinement(), sgpp::optimization::IterativeGridGeneratorFuzzyRitterNovak::generate(), sgpp::optimization::IterativeGridGeneratorLinearSurplus::generate(), sgpp::optimization::IterativeGridGeneratorRitterNovak::generate(), sgpp::datadriven::LearnerBaseSP::InitializeGrid(), refine(), sgpp::pde::PDESolver::refineInitialGridSurplus(), sgpp::pde::PDESolver::refineInitialGridSurplusSubDomain(), sgpp::pde::PDESolver::refineInitialGridSurplusToMaxLevel(), sgpp::pde::PDESolver::refineInitialGridSurplusToMaxLevelSubDomain(), and sgpp::datadriven::LearnerBaseSP::train().

◆ getSize()

size_t sgpp::base::Grid::getSize ( ) const

Returns the number of points on the grid.

Returns: the number of points on the grid

References sgpp::base::HashGridStorage::getSize(), and storage.

◆ getStorage()

GridStorage & sgpp::base::Grid::getStorage ( )

virtual

gets a reference to the GridStorage object

Returns: reference to the GridStorage obeject

References storage.

◆ getStretching()

Stretching & sgpp::base::Grid::getStretching ( )

virtual

gets a reference to the GridStorage's Stretching object

Returns: reference to the GridStorage's Stretching object

References sgpp::base::HashGridStorage::getStretching(), and storage.

Referenced by sgpp::base::DirichletGridConverter::buildInnerGridWithCoefs(), sgpp::pde::HeatEquationSolverWithStretching::constructGrid(), and sgpp::base::GridPrinterForStretching::printGrid().

◆ getType()

virtual sgpp::base::GridType sgpp::base::Grid::getType ( )

pure virtual

Returns a string that identifies the grid type uniquely.

Returns: string that identifies the grid type uniquely

Referenced by sgpp::base::DirichletGridConverter::buildInnerGridWithCoefs(), createGridOfEquivalentType(), sgpp::optimization::IterativeGridGeneratorLinearSurplus::generate(), getTypeAsString(), getZeroBoundaryType(), sgpp::base::HierarchisationSLE::HierarchisationSLE(), sgpp::optimization::IterativeGridGeneratorLinearSurplus::IterativeGridGeneratorLinearSurplus(), sgpp::base::DirichletGridConverter::rebuildInnerGridWithCoefs(), and serialize().

◆ getTypeAsString()

std::string sgpp::base::Grid::getTypeAsString ( )

Returns a string that identifies the grid type uniquely.

Returns: string that identifies the grid type uniquely

References getType().

◆ getZeroBoundaryType()

GridType sgpp::base::Grid::getZeroBoundaryType ( )

Returns the grid type that corresponds to the actual type but does no boundary treatment.

Returns: grid type

◆ insertPoint()

void sgpp::base::Grid::insertPoint	(	size_t	dim,
		unsigned int	levels[],
		unsigned int	indices[],
		bool	isLeaf
	)

Insert one point to the grid.

Parameters

dim	dimension of the grid
levels	array with levels of the point
indices	array with indices of the point
isLeaf	indicator whether the point is a leaf

References sgpp::base::HashGridStorage::insert(), sgpp::base::HashGridPoint::push(), sgpp::base::HashGridPoint::set(), and storage.

Referenced by python.uq.refinement.AdmissibleSet.AdmissibleSparseGridNodeSet::addCollocationNode(), python.uq.refinement.AdmissibleSet.RefinableNodesSet::create(), and getBasis().

◆ nullFactory()

Grid * sgpp::base::Grid::nullFactory ( std::istream & )

staticprotected

Factory for everything we don't know.

◆ refine()

void sgpp::base::Grid::refine	(	DataVector &	vector,
		int	numOfPoints
	)

Refine grid Refine the given number of points on the grid according to the vector.

Parameters

vector	DataVector vector with errors for each basis function or alpha-vector
numOfPoints	integer number of points to refine

References getGenerator(), and sgpp::base::GridGenerator::refine().

◆ serialize() [1/3]

std::string sgpp::base::Grid::serialize ( int version = SERIALIZATION_VERSION )

Serializes grid to a string.

Needed for Java compatibility.

Parameters

version the serialization version of the file

Returns: string into which the grid is written

References serialize().

Referenced by python.learner.formatter.GridFormatter.GridFormatter::serializeToFile(), python.learner.formatter.LearnedKnowledgeFormatter.LearnedKnowledgeFormatter::serializeToFile(), python.learner.formatter.LearnerFormatter.LearnerFormatter::serializeToFile(), python.uq.analysis.asgc.ASGCKnowledgeFormatter.ASGCKnowledgeFormatter::serializeToFile(), python.uq.sampler.asgc.ASGCSamplerFormatter.ASGCSamplerFormatter::serializeToFile(), python.uq.uq_setting.UQSettingFormatter.UQSettingFormatter::serializeToFile(), and python.utils.GzipSerializer.GzipSerializer::serializeToFile().

◆ serialize() [2/3]

void sgpp::base::Grid::serialize	(	std::ostream &	ostr,
		int	version = `SERIALIZATION_VERSION`
	)

virtual

Serializes the grid.

Override if additional information need to be saved. Call base function before writing anything!

Parameters

ostr	stream to which the grid is written
version	the serialization version of the file

References getType(), sgpp::base::HashGridStorage::serialize(), and storage.

Referenced by python.learner.formatter.GridFormatter.GridFormatter::serializeToFile(), python.learner.formatter.LearnedKnowledgeFormatter.LearnedKnowledgeFormatter::serializeToFile(), python.learner.formatter.LearnerFormatter.LearnerFormatter::serializeToFile(), python.uq.analysis.asgc.ASGCKnowledgeFormatter.ASGCKnowledgeFormatter::serializeToFile(), python.uq.sampler.asgc.ASGCSamplerFormatter.ASGCSamplerFormatter::serializeToFile(), python.uq.uq_setting.UQSettingFormatter.UQSettingFormatter::serializeToFile(), and python.utils.GzipSerializer.GzipSerializer::serializeToFile().

◆ serialize() [3/3]

void sgpp::base::Grid::serialize	(	std::string &	ostr,
		int	version = `SERIALIZATION_VERSION`
	)

Serializes grid to a string.

Needed for Python compatibility. Calls serialize(std::ostream&).

Parameters

ostr	string into which the grid is written
version	the serialization version of the file

References serialize().

◆ setAlgorithmicDimensions()

void sgpp::base::Grid::setAlgorithmicDimensions ( std::vector< size_t > newAlgoDims )

sets the algorithmic dimensions (the dimensions in which the Up Down operations should be applied)

Parameters

newAlgoDims std::vector containing the algorithmic dimensions

References sgpp::base::HashGridStorage::setAlgorithmicDimensions(), and storage.

◆ setBoundingBox()

void sgpp::base::Grid::setBoundingBox ( BoundingBox & boundingBox )

virtual

sets the GridStorage's BoundingsBox

References sgpp::base::HashGridStorage::setBoundingBox(), and storage.

◆ setStretching()

void sgpp::base::Grid::setStretching ( Stretching & stretching )

virtual

sets the GridStorage's Stretching pointer to a Stretching object

Parameters

stretching pointer to the GridStorage's Stretching object

References sgpp::base::HashGridStorage::setStretching(), and storage.

◆ stringToGridType()

GridType sgpp::base::Grid::stringToGridType ( const std::string & gridType )

static

Conversion from string to grid type.

Parameters

gridType grid type as a string

Returns: actual grid type

Referenced by sgpp::datadriven::SparseGridDensityEstimatorConfiguration::SparseGridDensityEstimatorConfiguration().

◆ unserialize() [1/2]

Grid * sgpp::base::Grid::unserialize ( const std::string & istr )

static

reads a grid out of a string

Parameters

istr	string that contains the grid information

Returns: grid

References unserialize().

Referenced by createGrid(), sgpp::datadriven::LearnerSGDE::createRegularGrid(), sgpp::datadriven::LearnerBase::LearnerBase(), sgpp::datadriven::LearnerBaseSP::LearnerBaseSP(), sgpp::datadriven::MultipleEvalHPX::LocalityMultiplier::LocalityMultiplier(), sgpp::pde::PDESolver::setGrid(), unserialize(), and unserializeFromFile().

◆ unserialize() [2/2]

Grid * sgpp::base::Grid::unserialize ( std::istream & istr )

static

reads a grid out of a stream

Parameters

istr	inputstream that contains the grid information

Returns: grid

◆ unserializeFromFile()

Grid * sgpp::base::Grid::unserializeFromFile ( std::string filename )

static

opens a file given by name and reads a grid out of the stored string @ param filename name of the file

Returns: grid

References unserialize().

Referenced by sgpp::optimization::SplineResponseSurfaceVector::SplineResponseSurfaceVector().

Member Data Documentation

◆ storage

GridStorage sgpp::base::Grid::storage

protected

GridStorage object of the grid.

Referenced by sgpp::base::BsplineClenshawCurtisGrid::BsplineClenshawCurtisGrid(), clone(), getAlgorithmicDimensions(), getBoundingBox(), getDimension(), getSize(), getStorage(), getStretching(), insertPoint(), sgpp::base::LinearClenshawCurtisBoundaryGrid::LinearClenshawCurtisBoundaryGrid(), sgpp::base::LinearClenshawCurtisGrid::LinearClenshawCurtisGrid(), sgpp::base::ModBsplineClenshawCurtisGrid::ModBsplineClenshawCurtisGrid(), sgpp::base::ModLinearClenshawCurtisGrid::ModLinearClenshawCurtisGrid(), sgpp::base::ModPolyClenshawCurtisGrid::ModPolyClenshawCurtisGrid(), sgpp::base::PolyClenshawCurtisBoundaryGrid::PolyClenshawCurtisBoundaryGrid(), sgpp::base::PolyClenshawCurtisGrid::PolyClenshawCurtisGrid(), serialize(), setAlgorithmicDimensions(), setBoundingBox(), and setStretching().

The documentation for this class was generated from the following files:

base/src/sgpp/base/grid/Grid.hpp
base/src/sgpp/base/grid/Grid.cpp

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ Factory

◆ factoryMap

◆ gridTypeVerboseMap

Constructor & Destructor Documentation

◆ Grid() [1/5]

◆ Grid() [2/5]

◆ Grid() [3/5]

◆ Grid() [4/5]

◆ Grid() [5/5]

◆ ~Grid()

Member Function Documentation

◆ clone()

◆ createBsplineBoundaryGrid()

◆ createBsplineClenshawCurtisGrid()

◆ createBsplineGrid()

◆ createFundamentalNakSplineBoundaryGrid()

◆ createFundamentalSplineBoundaryGrid()

◆ createFundamentalSplineGrid()

◆ createGrid()

◆ createGridOfEquivalentType()

◆ createLinearBoundaryGrid()

◆ createLinearClenshawCurtisBoundaryGrid()

◆ createLinearClenshawCurtisGrid()

◆ createLinearGrid()

◆ createLinearGridStencil()

◆ createLinearStretchedBoundaryGrid()

◆ createLinearStretchedGrid()

◆ createLinearTruncatedBoundaryGrid()

◆ createModBsplineClenshawCurtisGrid()

◆ createModBsplineGrid()

◆ createModFundamentalSplineGrid()

◆ createModLinearClenshawCurtisGrid()

◆ createModLinearGrid()

◆ createModLinearGridStencil()

◆ createModNakBsplineGrid()

◆ createModPolyClenshawCurtisGrid()

◆ createModPolyGrid()

◆ createModWaveletGrid()

◆ createModWeaklyFundamentalNakSplineGrid()

◆ createNakBsplineBoundaryGrid()

◆ createNakBsplineExtendedGrid()

◆ createNakBsplineGrid()

◆ createNakPBsplineGrid()

◆ createNaturalBsplineBoundaryGrid()

◆ createPeriodicGrid()

◆ createPolyBoundaryGrid()

◆ createPolyClenshawCurtisBoundaryGrid()

◆ createPolyClenshawCurtisGrid()

◆ createPolyGrid()

◆ createPrewaveletGrid()

◆ createSquareRootGrid()

◆ createWaveletBoundaryGrid()

◆ createWaveletGrid()

◆ createWeaklyFundamentalNakSplineBoundaryGrid()

◆ createWeaklyFundamentalSplineBoundaryGrid()

◆ getAlgorithmicDimensions()

◆ getBasis()

◆ getBoundingBox()

◆ getDimension()

◆ getGenerator()

◆ getSize()

◆ getStorage()

◆ getStretching()

◆ getType()

◆ getTypeAsString()

◆ getZeroBoundaryType()

◆ insertPoint()

◆ nullFactory()

◆ refine()

◆ serialize() [1/3]

◆ serialize() [2/3]

◆ serialize() [3/3]
